Power Transformer 30VA Kit

Power Transformer Kit

Power Transformer Kit

Power Transformer Kit

Power Transformer Kit

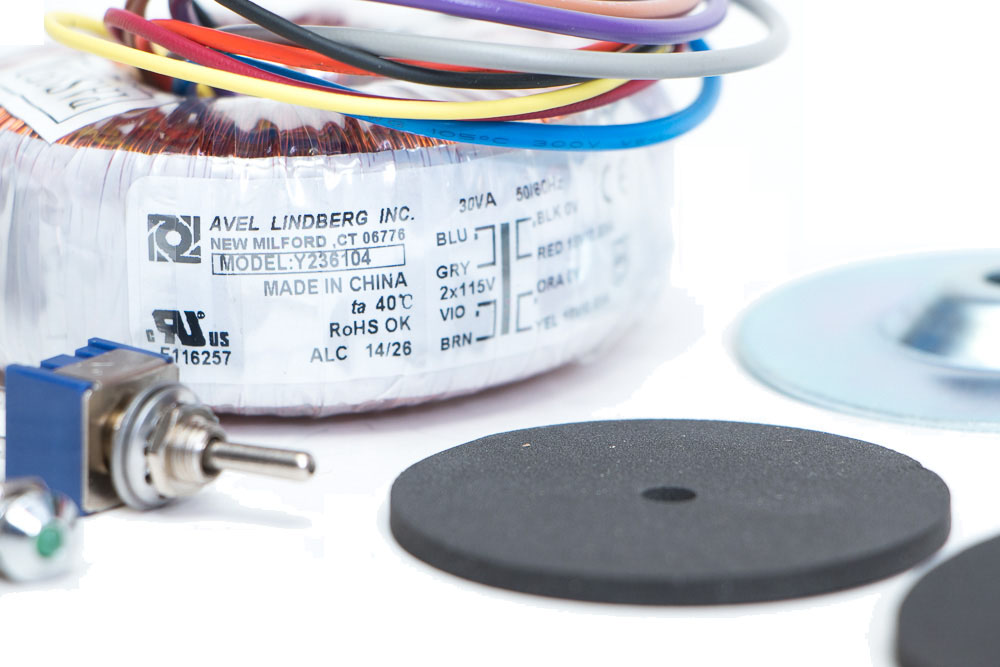

Our power transformer kit is designed to fit inside a 1u rack case height. Dual winding primaries mean this power transformer can be used for 110VAC or 220VAC operation. All the necessary hardware, including rubber mats and a mounting bolt and end cap are included with the transformer. A standard size IEC AC inlet, fuse holder and fuse, a power switch and LED power lamp is also included.

  • Dual Primaries: 115V + 115V. Frequency: 50/60 Hz. (can be used for 110VAC or 220VAC operation)
  • High pot: tested at 4K VRMS
  • Dual secondaries. Secondary voltage tolerance: Within 3% at normal input and full load
  • Mounting hardware: Metal dish, 2 foam pads, bolt, washer, and nut included with each transformer
  • Leads: 150 mm / 6" (±5 mm / .2") stranded, PVC insulated
  • Double-insulated primary leads: UL1672 (105º C, 300 V)
  • Secondary leads: UL3266 (125º C, 300 V)
  • Clearance: allow 4 mm / .2" over mounting hardware.
  • Certifications: UL506/CSA 22.2, No. 66; CE marked and tested in accordance with EN61558 (replacing EN60742), EN60065, EN60950, BS415, VDE0550. Also available: UL1411/CSA 22.2 No. 1-94; UL1950/CSA 22.2 No. 950-95; UL2601 (UL544)/CSA 22.2 No. 601.1.

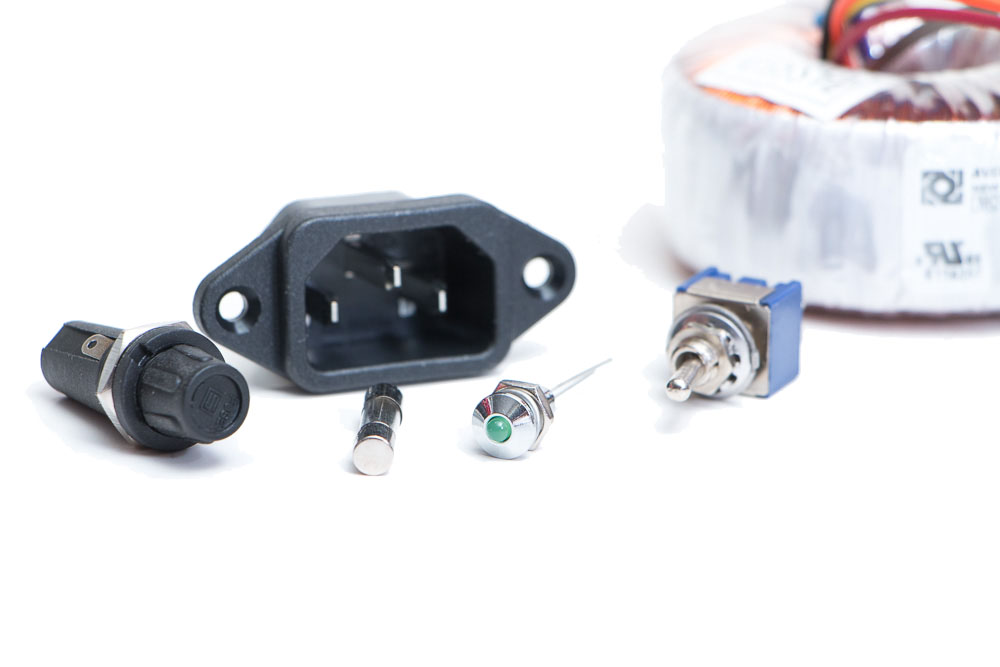

  • Includes IEC AC inlet
  • Includes Fuse Holder and Fuse

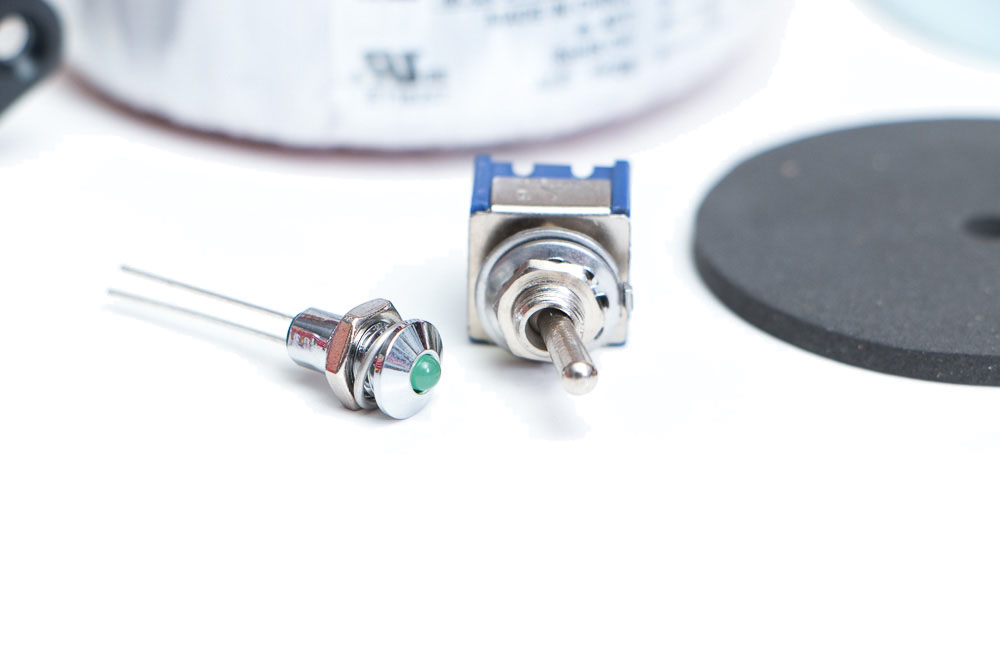

  • Includes Power Switch and LED Lamp indicator (standard LED)

The fivefish kits are very high-end, the PCBs are very thick and sturdy, the coating is excellent and very resistant, they look very well done, unlike anything i have ever seen before. - J.Gomez, Analog Recording Forum

The circuit boards are TOP-NOTCH.. fully through-plated vias, incredible component layer silkscreen.... I barely even needed to look at the directions... all parts were individually packed and labeled... put together the power supply board in about 1 hour... - forum post on Gearslutz.com

The project was a lot of fun and I must say that your directions and packaging are as close to perfect as anyone can imagine. I know from your web site that you wear a lot of hats (don't we all) but you should consider technical writing as at least a part time job. It's hard to write things like tech manuals and instruction books and you definitely have the knack for it. I sense that Five Fish as a commercial venture is pretty new but with great products and service like this you have every chance of making this a real success. This is my first electronics assembly project but I am certain it will not be my last. I know you are working on a bunch of things and I will want to give another one a try sometime. I would be interested for sure in either building a couple more of these and modifying them with some transformers, or even tackling that API-type design you are working on. Please keep me posted about your emerging products. Again thanks for all of your patience and support. - R.Miller, Music Professor, USA

I just wanted to let you know how impressed I am with your kit, packaging, instructions, and the whole experience. You can't be making much money from the effort and still you managed my transaction as if I were spending $2,000. Congratulations on a great service and on your future efforts. - Lew K., USA

Everything was flawless; didn't even have to look at the build sheet or parts layout, as the PCB is quite good, and all parts are in individual bags and labeled. Anyone with basic soldering skills can put these together. Everything was flawless; didn't even have to look at the build sheet or parts layout, as the PCB is quite good, and all parts are in individual bags and labeled. The power supply was about a half hour to build ... it is by far the easiest part of the kit to build. Anyone with basic soldering skills can put these together. People seem to have an unnatural fear of making power supplies, but they're really quite simple, and anyone with an iota of common sense can do it. - C.Randall - Audio Damage, Inc. - http://www.audiodamage.com

I've been meaning to let you know how much I appreciate your whole DIY thing. It's a great service to all the DIY audio freaks out there and the PSU's rock. Very nice attention to detail also, which means a lot to me. I'm a furniture maker by trade, so elegance in design is something I notice. I've been meaning to let you know how much I appreciate your whole DIY thing. It's a great service to all the DIY audio freaks out there and the PSU's rock. Very nice attention to detail also, which means a lot to me. I'm a furniture maker by trade, so elegance in design is something I notice. - T.Philp

Power Transformer 30VA Kit

$38 Power Transformer Kit
